GPL Z9000 Odorizer Preventive Maintenance

The following is the recommended preventative maintenance for the GPL Z9000 natural gas odorizer. These are guidelines and may vary depending on each site’s circumstances and history of performance. Also, a perfect place to acquaint yourself with this odorant injection system is the GPL Z9000 Instructional Video page.

preventative maintenance

GPL Z9000 Weekly Examination

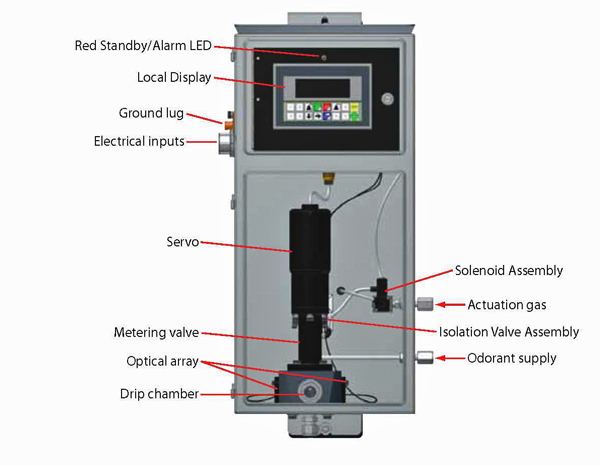

Schematic of the GPL Z9000 natural gas odorizer

The GPL Z9000 Natural Gas Odorizer

  1. Check the odorizer for alarms.
  2. Assess the number of Auto Clears used.
  3. If half of the Auto Clears have been used, search for the problem and try to resolve it.
  4. Verify that the settings are correct, and the unit is odorizing the desired level.
  5. Check the regulators to ensure they are holding proper system pressure.
  6. Verify that the optics are calibrated.

Monthly Odorizer Check

  1. Confirm that the nuts and bolts are tight, and the servo motor is not too loose or too tight.
  2. Check for visible signs of leaks.
  3. Sniff for extreme odor inside the box.
  4. Inspect the level gauge on the tank and assure it is moving.

Biannual Odorant Injection Inspection

  1. Inspect the tank for leaks or damage.
  2. Make sure the reservoir level is over 25%. If less, refill the tank.
  3. Remove the actuator and manually check the isolation valve for shut off.
  4. Remove the servo and inspect the metering valve for smooth operation.
  5. If the battery on the CPU is low, replace it.

Annual Odorization System Preventative Maintenance

  1. Check the power supply and make sure it is functioning correctly.
  2. Inspect the solar panels for chips, cracks, or other damage.
  3. Inspect solar batteries for damage.
  4. Change the filter element.
  5. Replace the O-rings in the metering valve.

Download the Z9000 User Manual.

Download the Z9000 Installation and Maintenance Manual.

Of course, a perfect place to acquaint yourself with this odorizer is the GPL Z9000 Instructional Video page. If you require maintenance see our Service page.
